3m Barrier-free Vertical Wheelchair Lift Platform Handicapped Lift for Disabled

Ask Lasest Price
Brand Name :	SDLIFT
Model Number :	SJGL0.25-3
Certification :	CE, ISO9001, SGS
Price :	US4800- USD7800 / UNIT
Supply Ability :	1200units per year
Delivery Time :	30 days after deposit

Add to Cart

Product Details
Company Profile

3m Barrier-free Vertical Wheelchair Lift Platform Handicapped Lift for Disabled

Barrier-free Vertical Wheelchair Lift Platform Handicapped Lift for Disabled

Vertical Wheelchair Platform Lift can be installed directly into the ground without pit, that is easy to operate and can make smooth and safe lifting.

It covered with aluminum static blasting painting panels or stainless steel panels, so that is uneasy to rust when placed outdoors.

This model of lifts have a fashionable and upscale appearance and can be maintained very conveniently.

➤ The vertical platform lift wheel chair lifts for disabled person or elder people adopts vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation.

➤The handicapped wheelchair elevator lift can be directly installed into the ground without architectural supporting pits and easy to operate.

➤Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.

➤Emergency descending system: when there is no power or malfunctions, manually descend the lift.

➤It’s suitable for large-sized newly-built residential estates and those areas where there is compact land resource.

Technical Parameters:

Platform size	1200mm(L)* 1000mm(W)
Dimension	1200mm(L)1450mm(W) Travel height +700-1100 mm(H)
Max Platform Height	3000mm
Min Platform height	80mm
Configuration	Open through or front and side entrances
Speed	60mm/s
Load capacity	250KG~350KG
Control voltage	24V/DC
Power Output	2.2KW
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic
Control Mode	Inching Switch or Automatic or remote
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Plastic electrostatic spraying
Painting	Plastic electrostatic spraying
Guard panel & drive cabinet (framework)	Aluminum Alloy / 304 stainless steel
Operation Panel	Polished aluminum Alloy
Safety Wane Working Range	75°
Working Condition	Both indoors and outdoors
Working temperature	From -10°~60°C
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Control Device	Calling box (installed on the wall nearby) and remote controller(Extra optional)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation .
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting

Sample model list:

Model No.	Lifting height	Platform size	Load capacity	Total dimention	Self weight
SJGL0.25-1	1000mm	1430*900mm	250kg	190014301200mm	350kg
SJGL0.25-2	2000mm	1430*900mm	250kg	290014301200mm	550kg
SJGL0.25-3	3000mm	1430*900mm	250kg	390014301200mm	780kg
SJGL0.25-3.5	3500mm	1430*900mm	250kg	440014301200mm	850kg
SJGL0.25-4	4000mm	1430*900mm	250kg	490014301200mm	880kg
SJGL0.25-4.5	4500mm	1430*900mm	250kg	540014301200mm	950kg
SJGL0.25-5	5000mm	1430*900mm	250kg	590014301200mm	1000kg
SJGL0.25-5.5	5500mm	1430*900mm	250kg	640014301200mm	1050kg
SJGL0.25-6	6000mm	1430*900mm	250kg	690014301200mm	1100kg

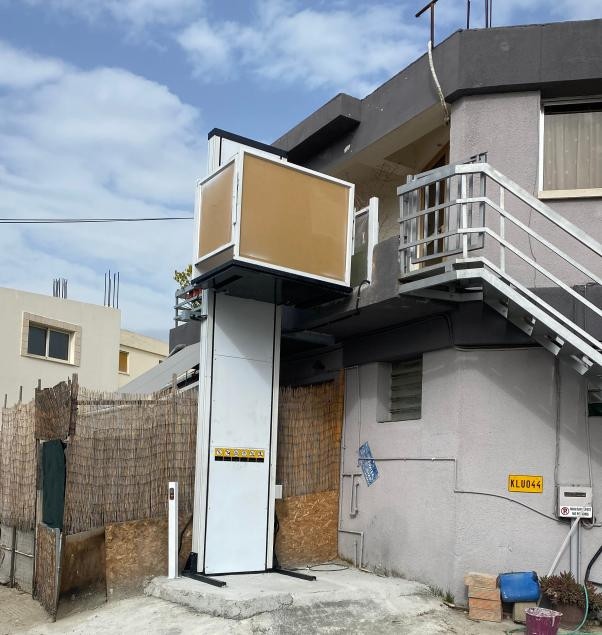

Lift pics after installing:

3m Barrier-free Vertical Wheelchair Lift Platform Handicapped Lift for Disabled

CE Certificate:
