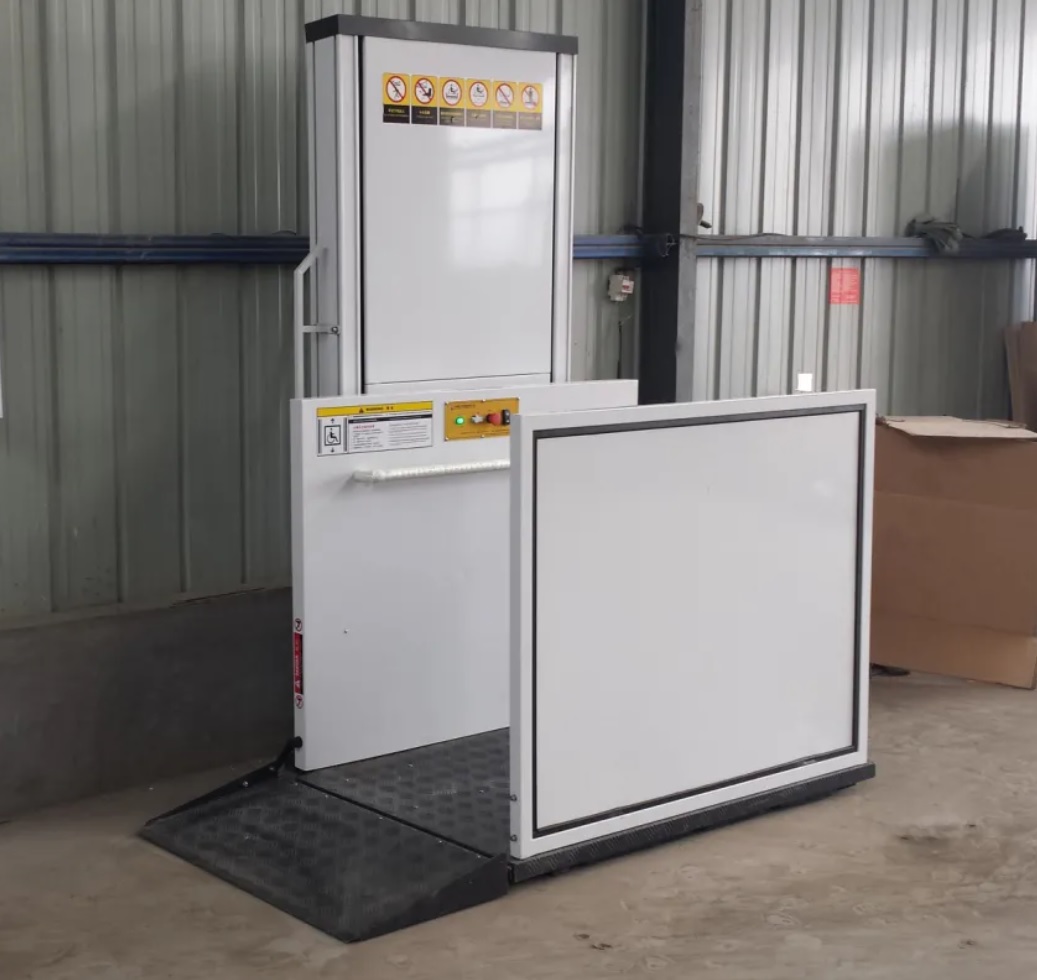

3m Personal Disabled Stair Lift Elevator wheelchair platform lifts for homes with CE

It is a device to transport wheelchair or people from one floor to another. It allows user to move freely within a multi-floored building and applicable to hotels , households,shopping malls and hospitals etc.

Main Parts

Small Home Lift

Floor control column	It is fixed on the ground and upper floor for the user easy operation with “UP”, “Down” and E-Stop button
Control Panel	Apart from “UP”, “Down” and E-Stop button on it, there is still with keys, when no use, we can lock the lift
Remote control	User can control the platform by remote controls
Drive tower	The platform will go up by climing the drive tower, it contains pump station, hydraulic cylinder etc.
Handrail	When the users enter into the platform, they can hold on it for safety when lifting up and down
Automatic ramp	When the platform off the ground, it will fold up automatically to ensure the users safety

Safety Device

Small Home Lift

Safety Interlock	Lock the platform when the vertical platform lift encounters an emergency
Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation
Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod
Auto-flap	The small ramp will turn up while lifting
Aluminum with tempered glass enclosure can be added per actual need.

Specification:

Mechanical platform lock It is a double safe design to protect people on platform
Emergency down button The platform can be lowered by manual down button in case of power failure
Safety sensor on the platform bottom The lift will be stopped at once if it touches any obstacles when going down, especially to protect the children if he enter accidentally.
Electromagnetic lock of the platform door Interlocking: The lift won’t work if the door is open, it can only rise when the door is completely closed. Electromagnetic lock: The door won’t be opened during the rising process.
Three calling and control type (platform control, remote control, post control) You can control the wheelchair lift at any place.

Model list:

MODEL	Lifting height	Platform size	Load capacity	Total dimention	Self weight
SJGL0.25-1	1000mm	1430*900mm	250kg	1900*1430*1200mm	350kg
SJGL0.25-2	2000mm	1430*900mm	250kg	2900*1430*1200mm	550kg
SJGL0.25-3	3000mm	1430*900mm	250kg	3900*1430*1200mm	780kg
SJGL0.25-3.5	3500mm	1430*900mm	250kg	4400*1430*1200mm	850kg
SJGL0.25-4	4000mm	1430*900mm	250kg	4900*1430*1200mm	880kg
SJGL0.25-4.5	4500mm	1430*900mm	250kg	5400*1430*1200mm	950kg
SJGL0.25-5	5000mm	1430*900mm	250kg	5900*1430*1200mm	1000kg
SJGL0.25-5.5	5500mm	1430*900mm	250kg	6400*1430*1200mm	1050kg
SJGL0.25-6	6000mm	1430*900mm	250kg	6900*1430*1200mm	1100kg
