300kgs 2.5m Vertical Wheelchair Platform Lift Wheelchair Lift for Private Villa

Ask Lasest Price
Brand Name :	SDLIFT
Model Number :	SJG0.25-2.5
Certification :	CE, ISO9001, SGS
Price :	US1980- USD4800 / UNIT
Supply Ability :	3600units per year
Delivery Time :	5-15 work days

Add to Cart

Product Details
Company Profile

300kgs 2.5m Vertical Wheelchair Platform Lift Wheelchair Lift for Private Villa

300kgs 2.5m Vertical Wheelchair Platform Lift Wheelchair Lift for Private Villa:

Product Description:

- Shandong Lift vertical disabled lifting platform give you a better access to porch, deck or floor-to floor with a compact platform lift. Offer people free lifestyle at home, public buildings or business.

- It is widely used for home, indoor and outdoor of public building.

- Customized product can be done as your request, please tell us load weight, lift height, and platform size, our engineer will design a suitable home lift for you soon.

Technical Parameters:

Specification:
Model	SJG0.25-2.5
Load capacity	250kg
Max. Platform Height	2500mm
Platform size	1430mm(L)* 900mm(W)
Dimension	1430mm(L)1000mm(W)3500mm(H)
Min Platform height	60mm
In and out	180°in and out
Self weight	700kg
Material	Stainless steel or aluminum alloy with Powder coating
Power Input	220V/50HZ/1PH/1.5KW
Convenient operation design:
Drive System	Hydraulic
Control Mode	Inching Switch
Drive Control	Self-resetting system
Calling device	Calling box (Located at ground and upstairs), remote controller (optional)
Column switch	Two column switches, one is on the ground floor, one on the first floor
Working temperature	From -10°~60°C
Overload	Protection over current relay
Automatic ramp	75°ramp Range
Working Condition	Both indoors and outdoors
Installation	Non-pit installation, directly fixed to concrete floor
Safety Device:
Safety Interlock:	Lock the platform when it is out of control
Emergency Stop	The lift can be stopped immediately in case of any emergency
Emergency Lowering	The platform can be lowered by manual down button in case of power failure
Safety Sensor	The lift will be stopped immediately if the safety edge meets obstacles when going down.
Auto-flap ramp	Turn up to max 75°and prevent the wheelchair outside

Installation pictures:

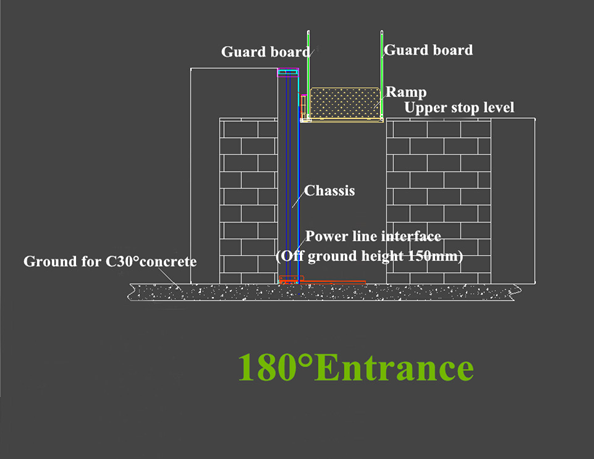

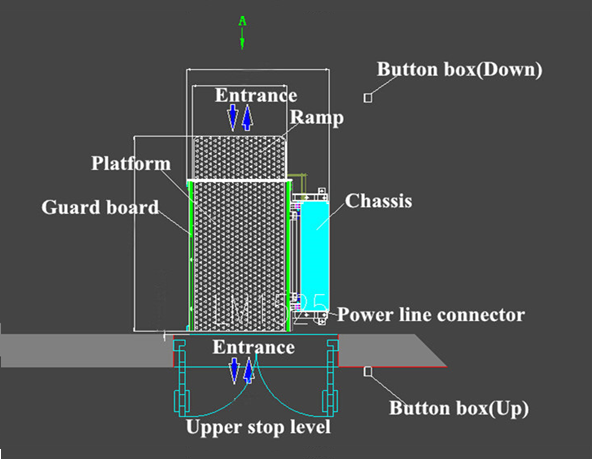

Wheelchair Lift Sketch Map:

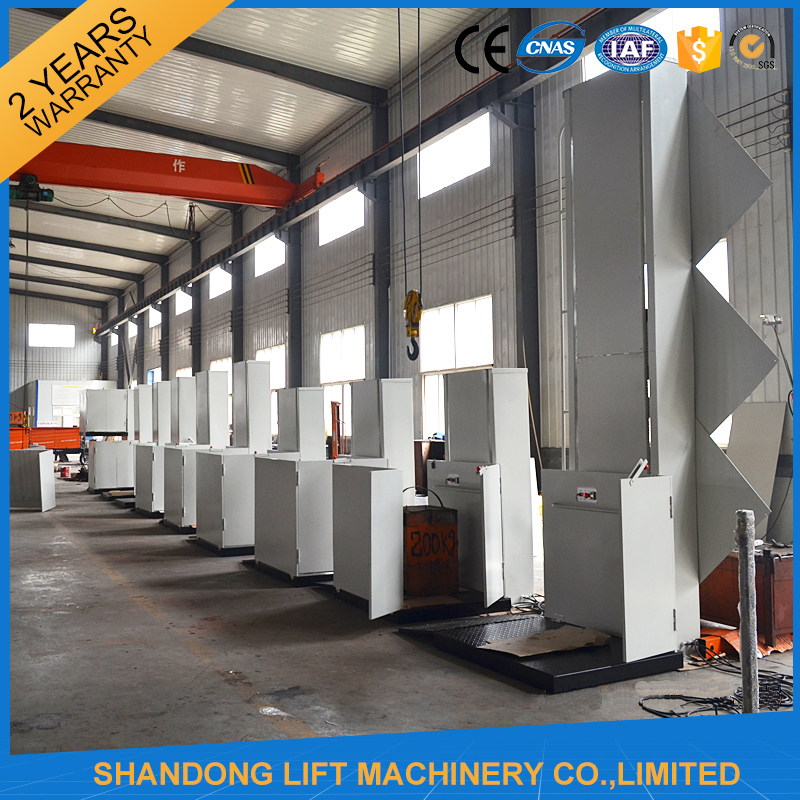

Product pictures:

The Certificate:

CE Car Lift for sale Hydraulic Car Scissor Lift with high strength Mn Steel

Our services:

1) We can design the Vertical Wheelchair Platform Lift as per your requirement.
2) The most suitable Vertical Wheelchair Platform Lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
