Portable 3M Wheelchair Platform Lift Passenger Elevators For Apartments

Ask Lasest Price
Brand Name :	SDLIFT
Model Number :	SJGL0.25-3
Certification :	CE, ISO9001, SGS
Price :	US1980- USD4800 / UNIT
Supply Ability :	1200units per year
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

Portable 3M Wheelchair Platform Lift Passenger Elevators For Apartments

Portable 3M hydrualic small home lift elevator wheelchair lift for apartments

Product Application

The small home lift elevator can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.

Main Features

1.Safety Interlock: Lock the platform when it is out of control
2.Emergency Stop: The lift can be stopped immediately in case of any emergency
3.Emergency Lowering: The platform can be lowered by manual down button in case of power failure
4.Safety Sensor: The lift will be stopped immediately if the safety edge meets obstacles when going down.
5.Auto-flap ramp: Turn up to max 75°and prevent the wheelchair outside

Model	SJGL0.25-3
Lift Height	3000mm
Lift Capacity	250kg
Material	stainless steel or aluminum alloy
Power	220v, 240v, 380v, or as your request
Note	The lift can be designed as your request.

Detailed Images

Portable 3M Wheelchair Platform Lift Passenger Elevators For Apartments

Convenient operation design.

1. Drive System: Hydraulic

2. Control Mode: Inching Switch

3. Drive Control: Self-resetting system

4. Calling device: Calling box (Located at ground and upstairs), remote controller (optional)

5. Column switch: Two column switches, one is on the ground floor, one on the first floor

6. Working temperature: From -10°~60°C

7. Overload: Protection over current relay

8. Automatic ramp: 75°ramp Range

9. Working Condition: Both indoors and outdoors

10. Installation: Non-pit installation, directly fixed to concrete floor

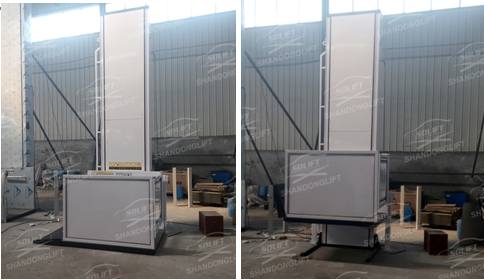

Instaillation Site
