    4.7M 3T Hydraulic Scissor Car Lift , Electric Car Parking Lift CE TUV SGS Home Use

    Ask Lasest Price
    Brand Name : SDLIFT Or OEM
    Model Number : SJG3-4.7
    Certification : CE TUV SGS
    Price : USD3980- USD7800 / UNIT
    Supply Ability : 3600units per year
    Delivery Time : 5-20 work days
    • Product Details
    • Company Profile

    4.7M 3T Hydraulic Scissor Car Lift , Electric Car Parking Lift CE TUV SGS Home Use

    4.7M 3T Hydraulic Scissor Car Lift Electric Car Parking Lift CE TUV SGS Home Use​:


    Application:

    - CE certification Hydraulic car scissor lift table/scissor platform can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
    - Operation is easy. There are 2 sets control system installed on the hydraulic car elevator garage car elevator, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



    The models we supplied for clients:



    MODELLOAD CAPACITYPLATFORM SIZELIFT HEIGHTPIT DEPTHPOWER
    SJG2.5-32.5T5.2m x 2.6m3m750mm220V, 240V, 380V or 400V
    SJG2-6.52T5.2m x 2.8m6.5m800mm220V, 240V, 380V or 400V
    SJG2.5-3.52.5T5.2m x 2.6m3.5m800mm220V, 240V, 380V or 400V
    SJG2.5-52.5T5.6m x 3m5m800mm220V, 240V, 380V or 400V
    SJG3-2.53T5m x 2.3m2.5m750mm220V, 240V, 380V or 400V
    SJG3-33T5.2m x 2.6m3m800mm220V, 240V, 380V or 400V
    SJG3-3.53T5.6m x 2.7m3.5m800mm220V, 240V, 380V or 400V
    SJG5-105T4.5m x 2.5m10m1150mm220V, 240V, 380V or 400V
    SJG8-2.58T6.5m x 4.5m2.5m850mm220V, 240V, 380V or 400V
    SJG12-312T5.5m x 2.8m3m950mm220V, 240V, 380V or 400V
    SJG15-4.515T8m x 2.2m4.5m1150mm220V, 240V, 380V or 400V
    SJG20-520T6m x 3m5m1200mm220V, 240V, 380V or 400V
    The Hydraulic scissor car lift table/scissor platform can be customized as your detailed size.

    Configuration:


    1) Platform Material: rectangular tube + checkered iron

    2) Scissor material: high strength Manganese Steel.

    3) Hydraulic system: 380V/5.5Kw

    4) High Precision Hydraulic Cylinder

    5) Piston Rod: hard chromium plating surface.

    6) High-pressure oil pump

    7) Hydraulic oil: summer 46#, winter 32#

    8) Controller: 1 control box below, 1 control panel above platform

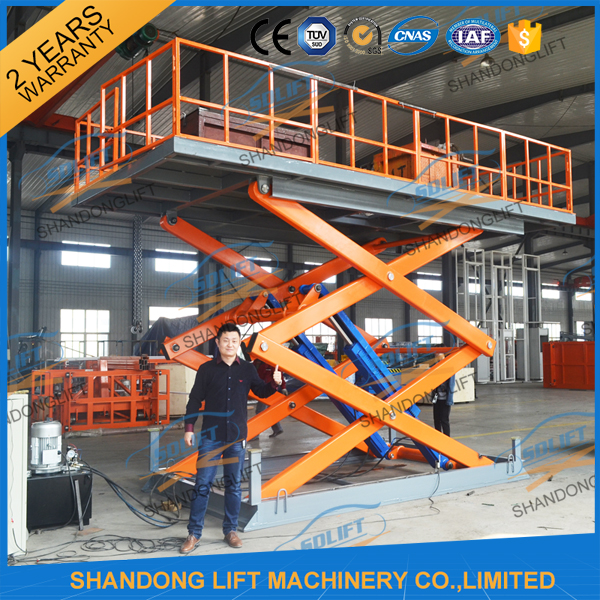

    Products showing:


    Safety:


    1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

    2) The safety rails to guarantee safety of the cars above the platform.

    3) The limit switch system helps car washing lift car to stop at accurate position.

    4) Electricity leakage protection device is equipped on, all electric components are CE certified.

    5) All the car washing lift are passed 1.2 times loading test before leaving factory.

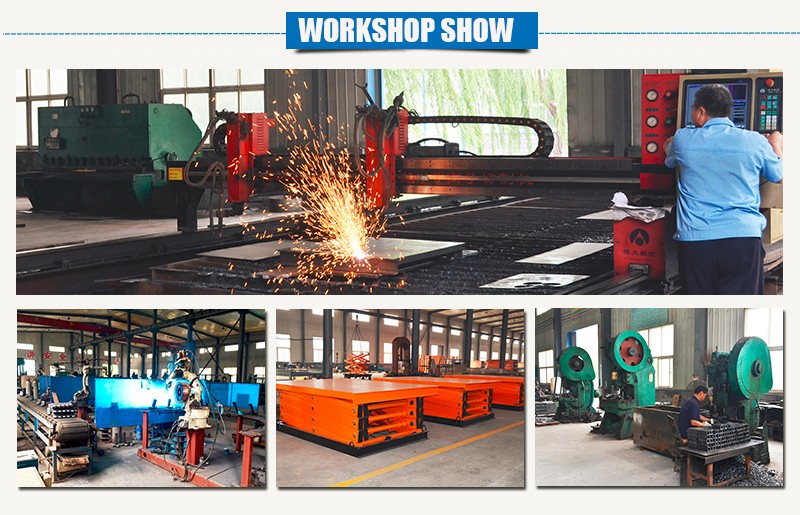

    The workshops:


    4.7M 3T Hydraulic Scissor Car Lift , Electric Car Parking Lift CE TUV SGS Home Use


    Packaging & Shipping:


    4.7M 3T Hydraulic Scissor Car Lift , Electric Car Parking Lift CE TUV SGS Home Use

    The customers visiting:


    Quality 4.7M 3T Hydraulic Scissor Car Lift , Electric Car Parking Lift CE TUV SGS Home Use for sale
