250KG 1.5M Home Wheelchair Elevator Electric - hydraulic Warehouse Wheelchair Lift

Ask Lasest Price
Brand Name :	SDLIFT
Model Number :	SJG0.25-1.5
Certification :	CE, ISO9001, SGS
Price :	US1980- USD4800 / UNIT
Supply Ability :	3600units per year
Delivery Time :	5-15 work days

Add to Cart

Product Details
Company Profile

250KG 1.5M Home Wheelchair Elevator Electric - hydraulic Warehouse Wheelchair Lift

250kg 1.5m Home Wheelchair Elevator Electric-hydraulic Warehouse Wheelchair Lift:

Application:
The home wheelchair elevator can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.
Customized product can be done as your request:
Lift height: 1m - 12m
Load capacity: 250kg - 500kg
Material: stainless steel or aluminum alloy with Powder coating
Technical Parameters:

Specification:
Model	SJG0.25-1.5
Load capacity	250kg
Max. Platform Height	1500mm
Platform size	1450mm(L)* 1000mm(W)
Dimension	1450mm(L)1310mm(W)2310mm(H)
Min Platform height	70mm
In and out	180°in and out
Self weight	700kg
Material	Stainless steel
Power Input	220V/50HZ/1PH/2.2KW
Convenient operation design:
Drive System	Hydraulic
Control Mode	Inching Switch
Drive Control	Self-resetting system
Calling device	Calling box (Located at ground and upstairs), remote controller (optional)
Column switch	Two column switches, one is on the ground floor, one on the first floor
Working temperature	From -10°~60°C
Overload	Protection over current relay
Working Condition	Both indoors and outdoors
Installation	Non-pit installation, directly fixed to concrete floor
Safety Device:
Safety Interlock:	Lock the platform when it is out of control
Emergency Stop	The lift can be stopped immediately in case of any emergency
Emergency Lowering	The platform can be lowered by manual down button in case of power failure
Safety Sensor	The lift will be stopped immediately if the safety edge meets obstacles when going down.

The workshops:

Detailed views:

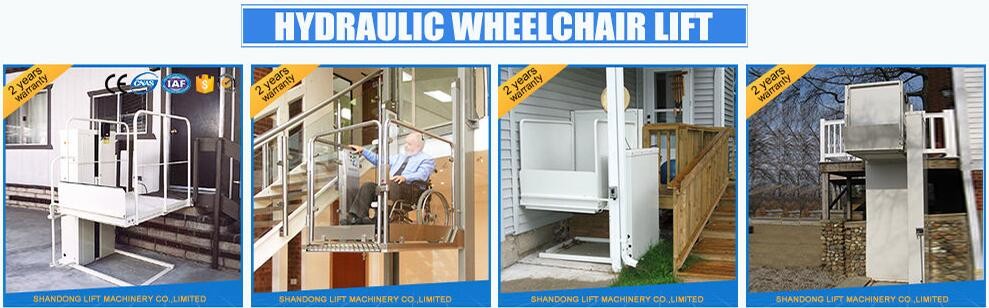

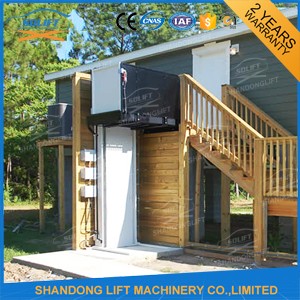

Installation sites:

Our service:
1) We can design the customerized home lift as per your requirement.
2) The home lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.

Customer visiting:
